生化学検査

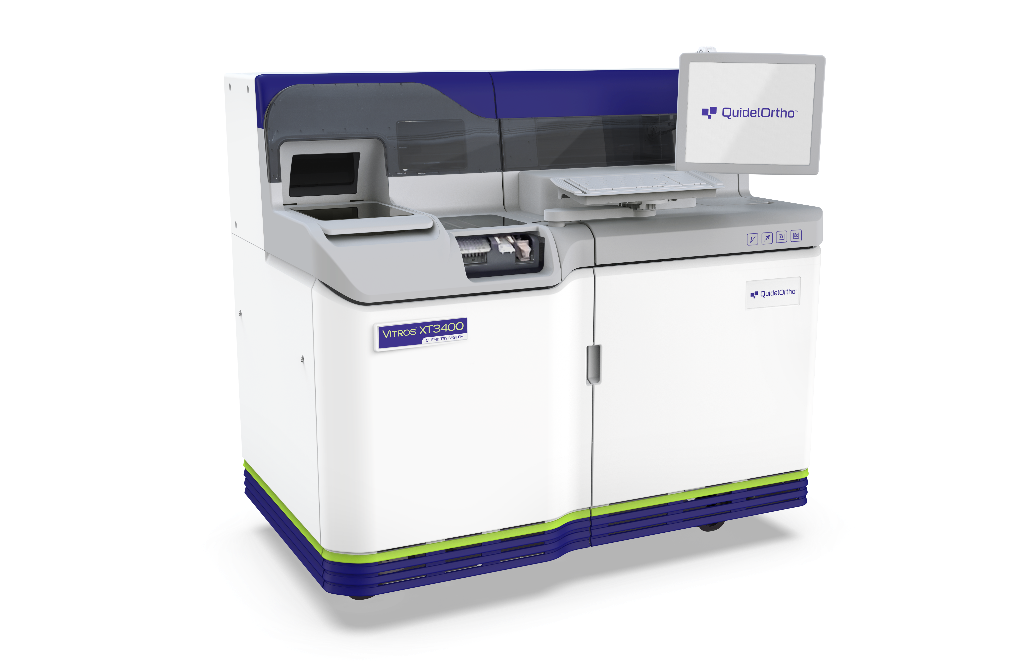

全自動生化学分析システム ビトロス™ XT3400
オーソ・クリニカル・ダイアグノスティックス株式会社
届出番号：13B3X10182000018
Item 1 of 2
特長
- 01
- デジタルケミストリーを採用することに より、検査結果の信頼性向上を実現
- 02
- ウォーターレスシステムのため水由来の トラブルを回避
- 03
- 少量の検体による迅速な測定結果報告 で患者サービスへの貢献を実現
製品概要
シンプルな測定機構
・試薬調整不要の、カートリッジ試薬による簡便な取扱い
・安定した試薬により、キャリブレーション回数を削減
・多層膜構造試薬による乳び、溶血、黄疸の原因となる脂質、ヘモグロビン、ビリルビンの影響回避
・ウォーターレスのため簡便なメンテナンス
完全自動血清情報測定機能
・乳び、溶血、黄疸を検体分注チップで吸引した残余検体でそのまま測定
・標準化された情報からアラートを出すため、安心で精確な報告結果を臨床に返すことが可能
信頼性を向上させるプロセス監視機構
・圧センサーによる液面検知、泡・フィブリン・粘性検知機構を搭載
・検体吸引時に異常を察知した場合、そのまま測定せず検体を容器に戻す機構を搭載
・検体分注（気泡、検体量不足、粘性エラー等の有無）、血清情報（乳び、溶血、黄疸の程度）を検体毎にデータとして記録
完全コンタミフリー
・ディスポーザブルチップを使用しているため、コンタミネーションを回避することが可能
仕様・スペック
| 測定方式 | ディスクリート方式ランダムアクセス |
|---|---|
| 測定原理 | 電極法、比色法、イムノレート法 |
| 処理能力(最大処理能力) | 755テスト/時(XTマイクロスライド未使用、理論値) 1,130テスト/時(XTマイクロスライド使用時、理論値) |
| 測定検体種別 | 血清、血漿、尿、髄液 |
| 必要検体量 | 2.5～11uL(項目による) |
| 検体架設数 | 最大80検体 |
| 検体検知センサー | インテリチェック™ 機能による液面検知・分注過程モニタリング |
| 対応検体容器 | 5mL、7mL、10mL各採血管、指定サンプルカップ対応 |
| 対応バーコード | Code39、Code128、ISBT128、Codabar、Interleaved 2 of 5 |
| 検体希釈 | 自動希釈、オペレーターによる希釈倍率指示、マニュアルによる希釈 |
| マイクロスライド試薬架設数 | 最大同時89カートリッジ |
| キャリブレーションメモリー数 | 項目毎に25キャリブレーション保存 |
| ロットスイッチ | 自動 |
| 単項目結果報告時間 | 電極法2.5分、比色法6分、イムノレート法9分 |
| 操作インターフェイス | カラー液晶タッチパネル方式（17インチ） |
| 通信仕様 | RS232C、ホスト問合せ（Host Query）可能 |
| 通信ポート | 1 x RS 232Cシリアルポート、2 x USBポート、2 x Ethernetポート |
| 寸法 | 1,473(幅)、869(奥行)、1,330(高さ)mm |
| 重量 | 440kg |
| 電源 | 単相交流200V 12A、50-60Hz |
| 最大電力 | 最大3.0KVA |
| 設置環境 | 温度15～30℃、湿度15～75% |
